BEECHCRAFT C-45 EXPEDITOR
Share
Link copied to clipboard
An error occured while copying the link. Please try again.

The Beechcraft Model 18 (or “Twin Beech”, as it is also known) is a six to 11-seat, twin-engined, low-wing, tailwheel light aircraft manufactured by the Beech Aircraft Corporation of Wichita, Kansas. Continuously produced from 1937 to November 1969 (over 32 years, the world record at the time), over 9,000 were produced, making it one of the world’s most widely used light aircraft. Sold worldwide as a civilian executive, utility, cargo aircraft, and passenger airliner on tailwheels, nosewheels, skis or floats, it was also used as a military aircraft.
During and after World War II, over 4,500 Beech 18s saw military service—as light transport, light bomber (for China), aircrew trainer (for bombing, navigation and gunnery), photo-reconnaisance, and “mother ship” for target drones—including United States Army Air Forces (USAAF) C-45 Expeditor, AT-7 Navigator, AT-11 Kansan; and United States Navy (USN) UC-45J Navigator, SNB-1 Kansan, and others. In World War II, over 90% of USAAF bombardiers and navigators trained in these aircraft.
In the early postwar era, the Beech 18 was the pre-eminent “business aircraft” and “feeder airliner.” Besides carrying passengers, its civilian uses have included aerial spraying, sterile insect release, fish seeding, dry ice cloud seeding, aerial firefighting, air mail delivery, ambulance service, numerous movie productions, skydiving, freight, weapon- and drug-smuggling, engine testbed, skywriting, banner towing, and stunt aircraft. Many are now privately owned, around the world, with over 300 in the U.S. still on the FAA Aircraft Registry in December 2014.

General characteristics

Crew: 2 pilots
Capacity: 6 passengers
Length: 34 ft 2 in (10.41 m)
Wingspan: 47 ft 8 in (14.53 m)
Height: 9 ft 8 in (2.95 m)
Wing area: 349 ft² (32.4 m²)
Empty weight: 6,175 lb (2,800 kg)
Loaded weight: 7,500 lb (3,400 kg)
Max. takeoff weight: 8,727 lb (3,959 kg)
Powerplant: 2 × Pratt & Whitney R-985-AN-1 "Wasp Junior" radial engines, 450 hp (336 kW) each

Performance

Maximum speed: 225 mph (195 knots, 360 km/h)
Range: 1,200 mi (1,000 NM, 1,900 km) at 160 mph (260 km/h)
Service ceiling: 26,000 ft (7,930 m)
Rate of climb: 1,850 ft/min (9.4 m/s)

Source: Wikipedia

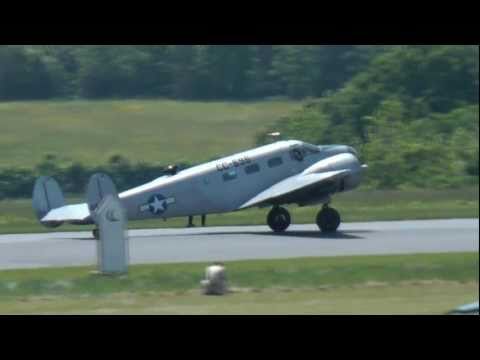

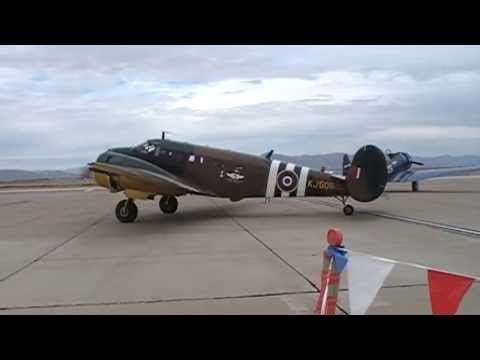

Photo courtesy: National Museum USAF
