Aeronautics Aircraft AirShow
B-52 Stratofortress
Share
Link copied to clipboard
An error occured while copying the link. Please try again.

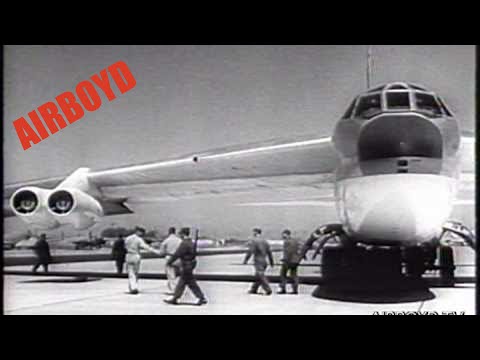

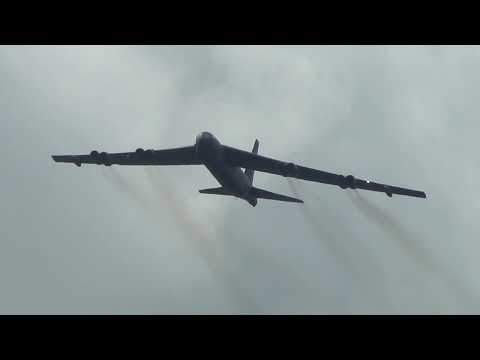

The Boeing B-52 Stratofortress is an American long-range, subsonic, jet-powered strategic bomber. The B-52 was designed and built by Boeing, which has continued to provide support and upgrades. It has been operated by the United States Air Force (USAF) since the 1950s. The bomber is capable of carrying up to 70,000 pounds (32,000 kg) of weapons, and has a typical combat range of more than 8,800 miles (14,080 km) without aerial refueling.

Beginning with the successful contract bid in June 1946, the B-52 design evolved from a straight wing aircraft powered by six turboprop engines to the final prototype YB-52 with eight turbojet engines and swept wings. The B-52 took its maiden flight in April 1952. Built to carry nuclear weapons for Cold War-era deterrence missions, the B-52 Stratofortress replaced the Convair B-36. A veteran of several wars, the B-52 has dropped only conventional munitions in combat. The B-52's official name Stratofortress is rarely used; informally, the aircraft has become commonly referred to as the BUFF (Big Ugly Fat Fucker).

The B-52 has been in active service with the USAF since 1955. As of December 2015, 58 were in active service with 18 in reserve. The bombers flew under the Strategic Air Command (SAC) until it was disestablished in 1992 and its aircraft absorbed into the Air Combat Command (ACC); in 2010 all B-52 Stratofortresses were transferred from the ACC to the newly created Air Force Global Strike Command (AFGSC). Superior performance at high subsonic speeds and relatively low operating costs have kept the B-52 in service despite the advent of later, more advanced aircraft, including the canceled Mach 3 B-70 Valkyrie, the variable-geometry B-1 Lancer, and the stealth B-2 Spirit. The B-52 completed sixty years of continuous service with its original operator in 2015. After being upgraded between 2013 and 2015, it is expected to serve into the 2050s.

General characteristics

Crew: 5 (pilot, copilot, weapon systems officer, navigator, electronic warfare officer, and tail gunner until the removal of the tail gun in 1991)
Length: 159 ft 4 in (48.5 m)
Wingspan: 185 ft 0 in (56.4 m)
Height: 40 ft 8 in (12.4 m)
Wing area: 4,000 sq ft (370 m²)
Airfoil: NACA 63A219.3 mod root, NACA 65A209.5 tip
Empty weight: 185,000 lb (83,250 kg)
Loaded weight: 265,000 lb (120,000 kg)
Max. takeoff weight: 488,000 lb (220,000 kg)
Fuel capacity: 47,975 U.S. gal (39,948 imp gal; 181,610 L)
Zero-lift drag coefficient: 0.0119 (estimated)
Drag area: 47.60 sq ft (4.42 m²)
Aspect ratio: 8.56
Powerplant: 8 × Pratt & Whitney TF33-P-3/103 turbofans, 17,000 lbf (76 kN) each

Performance

Maximum speed: 560 kn (650 mph, 1,047 km/h)
Cruise speed: 442 kn (525 mph, 844 km/h)
Combat radius: 4,480 mi (3,890 nmi, 7,210 km)
Ferry range: 10,145 mi (8,764 nmi, 16,232 km)
Service ceiling: 50,000 ft (15,000 m)
Rate of climb: 6,270 ft/min (31.85 m/s)
Wing loading: 120 lb/ft² (586 kg/m²)
Thrust/weight: 0.31
Lift-to-drag ratio: 21.5 (estimated)

Source: Wikipedia
Photo credit: www.af.mil
